| Model： |

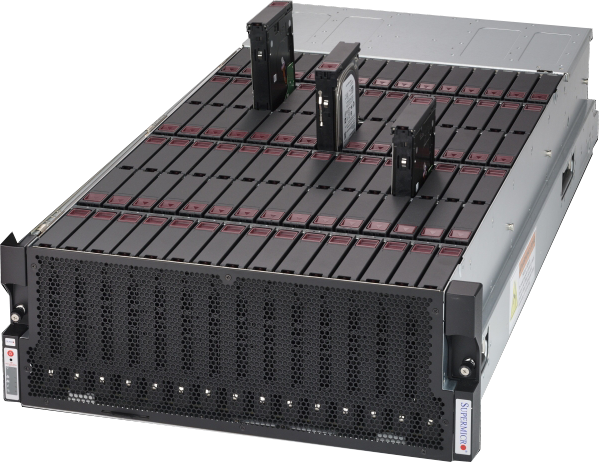

6048R-E1CR90L |
| Model： |
6048R-E1CR90L |
| Chipset： |
Intel® C612 |
| Application： |
SuperStorage |
| Processors： |
Dual socket R3 (LGA 2011) supports Intel® Xeon® processor E5-2600 v4†/ v3 family; QPI up to 9.6GT/s |
| Memory： |
Up to 1TB ECC 3DS LRDIMM , up to DDR4- 2400†MHz ; 8x DIMM slots |
| Expansion slots： |
SIOM card for multiple IO options |
| LAN： |
Quad LAN with Intel® X710® Family Controller |
| Storage： |
90x 3.5" Hot-swap SAS3/SATA3 drive bays; 2x 2.5" rear Hot-swap SATA drive bays |
| Interface： |
Server remote management: IPMI 2.0 / KVM over LAN / Media over LAN |
| PSU： |
4x 1000W Redundant Power Supplies Titanium Level (96%) Certified |
| Graphices： |
ASPEED AST2400 BMC 1 VGA port |
