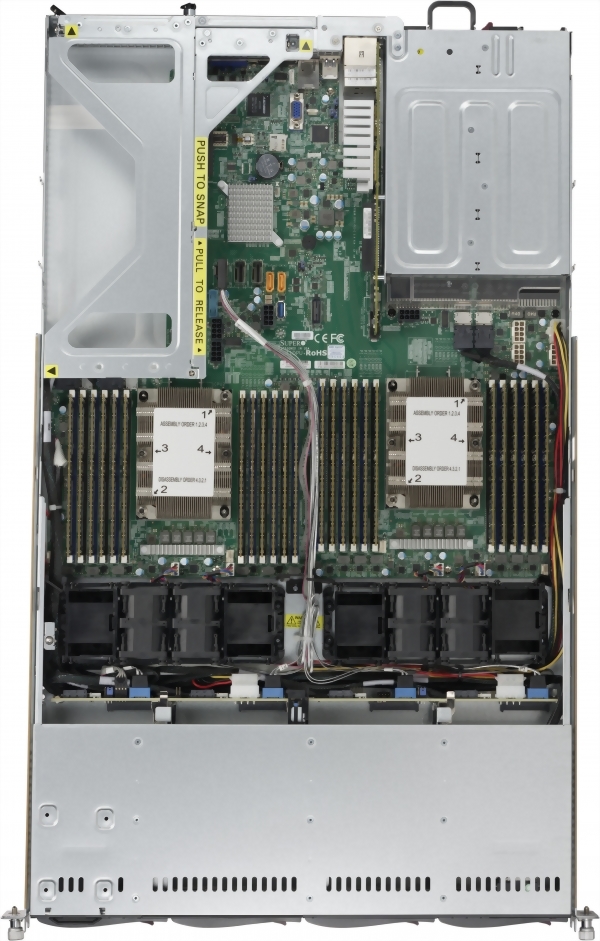

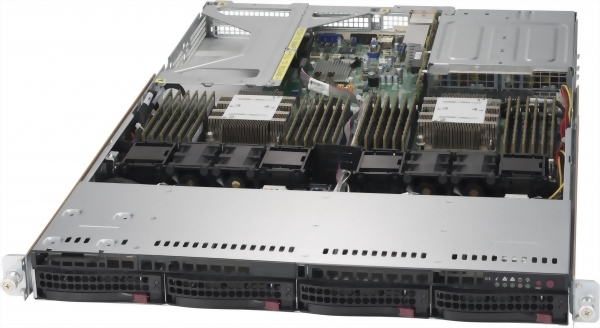

SYS-6019U-TRT
Dual Socket P (LGA 3647) support
2nd Gen Intel® Xeon® Scalable
processors (Cascade Lake/Skylake)
2nd Gen Intel® Xeon® Scalable
processors (Cascade Lake/Skylake)
| Model： | SYS-6019U-TRT |
|---|---|
| Model： | SYS-6019U-TRT |
| Chipset： | Intel® C621 |
| Application： | Virtualization/ Cloud Computing/ High End Enterprise Server |
| Processors： | Dual Socket P (LGA 3647) support 2nd Gen Intel® Xeon® Scalable processors (Cascade Lake/Skylake) |
| Memory： | 24 DIMMs up to 6TB 3DS ECC DDR4-2933MHz RDIMM/LRDIMM, Supports Intel® Optane™ DCPMM |
| Expansion slots： | 2 PCI-E 3.0 x16 slots (FH, 10.5" L), 2 PCI-E 3.0 x8 slots (1 LP, 1 internal LP) |
| LAN： | 2x 10GBase-T Ethernet ports |
| Storage： | 4 Hot-swap 3.5" Drive Bays; Optional M.2 NVMe and SATA3 ports |
| Interface： | 1、 M.2 PCI-E 3.0 x4 M-Key NVMe or 1 M.2 M-Key SATA3 (2240/2260/2280/22110) via optional riser card (see optional parts list) 2、 M.2 PCI-E 3.0 x4 M-Key NVMe (2260/2280/22110) via optional add-on card AOC-SLG3-2M2 |
| PSU： | 750W Redundant Power Supplies Platinum Level (94%+) |
| Graphices： | ASPEED AST2500 BMC 2 VGA ports (1 rear, 1 onboard) |
